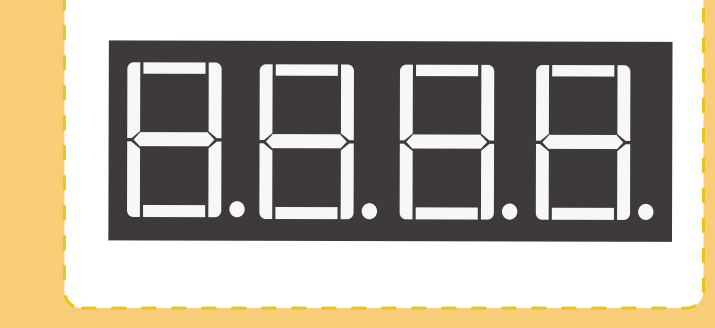

الشاشة سباعية المقاطع ذات أربع خانات (4 Digit 7-Segment Display)

//www.elegoo.com
//2016.12.12

int latch=9;  //74HC595  pin 9 STCP
int clock=10; //74HC595  pin 10 SHCP
int data=8;   //74HC595  pin 8 DS

unsigned char table[]=
{0x3f,0x06,0x5b,0x4f,0x66,0x6d,0x7d,0x07,0x7f,0x6f,0x77,0x7c
,0x39,0x5e,0x79,0x71,0x00};//Display digital data

void setup() {
  pinMode(latch,OUTPUT);
  pinMode(clock,OUTPUT);
  pinMode(data,OUTPUT);
}
/*   The most common method of using 74CH595
 *   latch->LOW : Begin transmitting signals.
 *   shiftOut(dataPin, clockPin, bitOrder, value)
 *   dataPin: the pin on which to output each bit. Allowed data types: int.
 *   clockPin: the pin to toggle once the dataPin has been set to the correct value. Allowed data types: int.
 *   bitOrder: which order to shift out the bits; either MSBFIRST or LSBFIRST. (Most Significant Bit First, or, Least Significant Bit First).
 *   value: the data to shift out. Allowed data types: byte.
 *   latch->HIch : The end of the transmission signal.
*/
void Display(unsigned char num)
{

  digitalWrite(latch,LOW);
  shiftOut(data,clock,MSBFIRST,table[num]);
  digitalWrite(latch,HIGH);

}
void loop() {
  Display(1);
  delay(500);
  Display(2);
  delay(500);
  Display(3);
  delay(500);
  Display(4);
  delay(500);
  Display(5);
  delay(500);
  Display(6);
  delay(500);
  Display(7);
  delay(500);
  Display(8);
  delay(500);
  Display(9);
  delay(500);
  Display(10);
  delay(500);
  Display(11);
  delay(500);
  Display(12);
  delay(500);
  Display(13);
  delay(500);
  Display(14);
  delay(500);
  Display(15);
  delay(500);
}
