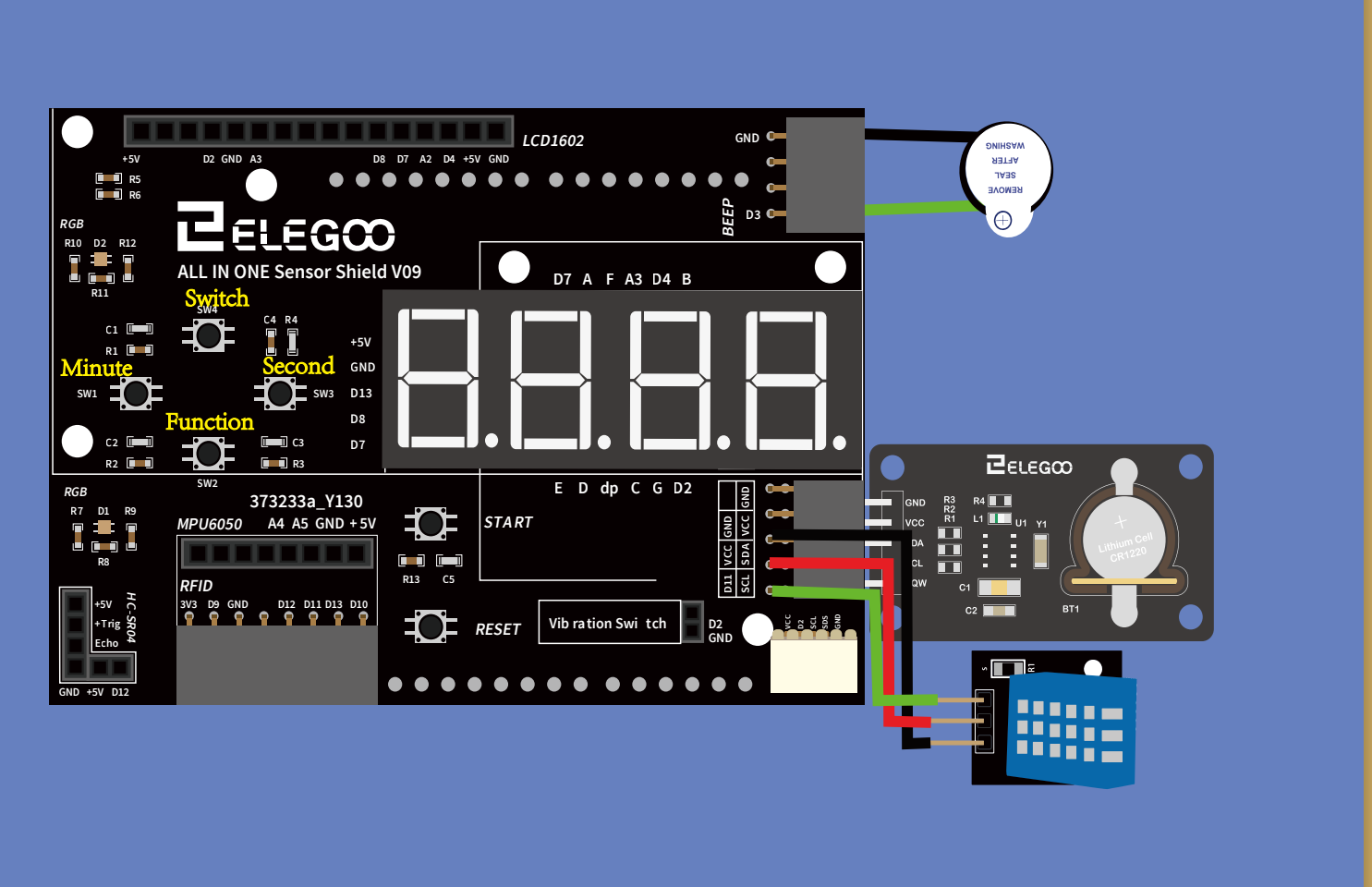

ساعة منبه متعددة الوظائف

void button_init(const uint8_t button_s,const uint8_t button_ms,const uint8_t button_choose,const uint8_t button_display_change)
{
  pinMode(button_s, INPUT_PULLUP);
  pinMode(button_ms, INPUT_PULLUP);
  pinMode(button_choose, INPUT_PULLUP);
  pinMode(button_display_change, INPUT_PULLUP);
  }


void button_interrupt_init(const uint8_t button_s,const uint8_t button_ms,const uint8_t button_choose,const uint8_t button_display_change)
{
  attachPCINT(digitalPinToPCINT(button_s), button_s_interrupt, FALLING );
  attachPCINT(digitalPinToPCINT(button_ms), button_ms_interrupt, FALLING);
  attachPCINT(digitalPinToPCINT(button_choose), button_choose_interrupt, FALLING );
  attachPCINT(digitalPinToPCINT(button_display_change), button_display_change_interrupt, FALLING );
}


void button_s_interrupt()
{
  time_button_s=millis();

  if (ELIMINAT_THE_JITTER_OF_BUTTON_S)
  {
    flag_alarm = 0;

    clock_to_timer();

    waiting_time_cnt=1;

    flag_begin=0;

    number +=100;

    last_time_button_s = time_button_s;

    if(function_clock || flag_year || flag_month || flag_temperature || flag_humidity )
     {
        display_clear();
        number = 0;
     }
    else if(flag_alarm_set && number >=2359)
      { number = 0;}

    if (number >= 9900)
        number = 9999;
  }
}

  void button_ms_interrupt()
{
  time_button_ms=millis();

  if (ELIMINAT_THE_JITTER_OF_BUTTON_MS)
  {
     flag_alarm = 0;

     clock_to_timer();

     waiting_time_cnt=1;

     flag_begin=0;

     number +=1;

     if(function_clock || flag_year || flag_month || flag_temperature || flag_humidity )
     {
        display_clear();
        number = 0;
     }
     else if(flag_alarm_set && number >=2359)
      { number = 0;}

     if(number%100 == 60 && number != 60)
       number = number/100*100+100;

     if(number==60)
        {number=100;}

     if (number >= 9900)
        number = 9999;

     last_time_button_ms = time_button_ms;
  }
}

void button_choose_interrupt ()
{
  time_button_choose=millis();

 if ( ELIMINAT_THE_JITTER_OF_BUTTON_CHOOSE &&
     !(flag_year || flag_month || flag_temperature || flag_humidity) )
  {
    waiting_time_cnt = 1;
    if(flag_alarm_ring)
    {
      flag_alarm_ring=0;
      function_clock=1;
      alarm_value = 0;
      eeprom_write_int(0,number);
      waiting_time_cnt=104;
      task2_cnt = 20;
      last_time_button_choose = time_button_choose;
      }
    else if( ( flag_year == 0 )        &&
             ( flag_month == 0 )       &&
             ( flag_temperature == 0  )&&
             ( flag_humidity == 0   )  &&
             ( function_clock )        &&
             ( flag_alarm == 1 )       && (flag_begin == 0) )
    {
      function_clock = 0;
      number = 0;
      alarm_value = 0;
      rgb_yellow();
      flag_alarm_set=1;
      last_time_button_choose = time_button_choose;
     }
    else if(  ((flag_alarm_set && flag_alarm == 0) || (number == 0 && function_clock == 0)) && (flag_begin != 1))
     {
       flag_alarm = 1;
       flag_alarm_set = 0;
       eeprom_write_int(0,number);
       alarm_value = eeprom_read_int(0);
       flag_alarm_set_ok = 1;
       EEPROM.write(3,flag_alarm_set_ok);
       function_clock = 1;
       waiting_time_cnt=104;
       last_time_button_choose = time_button_choose;
      }
    else if( flag_alarm_set != 1)
    {
      clock_to_timer();
      rgb_light();

      if(flag_begin)
        {
          waiting_time_cnt=104;
         }

      flag_begin=!flag_begin;

      last_time_button_choose = time_button_choose;
    }
  }
}

void clock_to_timer()
{
  if(function_clock)
  {
    function_clock=0;
    number=0;
   }
 }

 void button_display_change_interrupt()
 {
   uint8_t display_mode[]={0,1,2,3,4};

   time_button_display_change = millis();

   if (ELIMINAT_THE_JITTER_OF_BUTTON_DISPLAY_CHANGE)
  {
     switch(display_mode[press_cnt++])
     {
      case DISPLAY_YEAR:
                          display_year();
                          break;
      case DISPLAY_MONTH:
                          display_month();
                          break;
      case DISPLAY_TIME:
                          display_time();
                          break;
      case DISPLAY_TEMPERATURE:
                          display_temperature();
                          break;
      case DISPLAY_HUNMIDITY:
                          display_humidity();
                          break;
      }

      if(press_cnt>4)
         press_cnt=0;

      waiting_time_cnt=1;
  }
}

void display_year()
{
    flag_year = 1 ;
    flag_month = 0;
    flag_temperature=0;
    flag_humidity=0;
}

void display_month()
{
    flag_year = 0 ;
    flag_month = 1;
    flag_temperature=0;
    flag_humidity=0;
}

void display_time()
{
    flag_year = 0;
    flag_month = 0;
    flag_temperature=0;
    flag_humidity=0;
    function_clock=1;
}

void display_temperature()
{
    flag_year =0 ;
    flag_month = 0;
    flag_temperature=1;
    flag_humidity=0;
}

void display_humidity()
{
    flag_year = 0;
    flag_month = 0;
    flag_temperature=0;
    flag_humidity=1;
}

void display_clear()
{
    flag_year = 0;
    flag_month = 0;
    flag_temperature=0;
    flag_humidity=0;
    function_clock=0;
}

void buzzer_init(const uint8_t buzzer)
{
  pinMode(buzzer,OUTPUT);
 }


void time_out()
{
   while(flag_begin && number==0)
          time_out_effect();

   while(alarm_value == dt.hour*100+dt.minute)
          time_out_effect();
}

void time_out_effect()
{
    if(alarm_value == dt.hour*100+dt.minute)
    {
      flag_alarm_ring = 1;
      flag_alarm_set = 0;
      flag_alarm_set_ok = 0;
      EEPROM.write(3,flag_alarm_set_ok);
     }
     clear_display();
     rgb_color();
     digitalWrite(BUZZER,HIGH);
     rgb_color();
     digitalWrite(BUZZER,LOW);
     rgb_color();
     rgb_light();
  }

#ifndef CLOCK_H
#define CLOCK_H

#include <Wire.h>

struct RTCDateTime
{
    uint16_t year;
    uint8_t month;
    uint8_t day;
    uint8_t hour;
    uint8_t minute;
    uint8_t second;
    uint8_t dayOfWeek;
    uint32_t unixtime;
};

RTCDateTime dt;
static uint8_t error_cnt;

#define DS3231_ADDRESS              (0x68)

#define DS3231_REG_TIME             (0x00)
#define DS3231_REG_CONTROL          (0x0E)

const uint8_t daysArray [] PROGMEM = { 31,28,31,30,31,30,31,31,30,31,30,31 };
const uint8_t dowArray[] PROGMEM = { 0, 3, 2, 5, 0, 3, 5, 1, 4, 6, 2, 4 };


#endif

#include "clock.h"

void clock_init()
{
  clock_begin();
}

void update_clock()
{
  if(flag_100ms_update_clock)
    {dt = clock_getDateTime();}
}

bool clock_begin(void)
{
    Wire.begin();

    clock_setBattery(true, false);

    dt.year = 2000;
    dt.month = 1;
    dt.day = 1;
    dt.hour = 0;
    dt.minute = 0;
    dt.second = 0;
    dt.dayOfWeek = 6;
    dt.unixtime = 946681200;

    return true;
}

void clock_setBattery(bool timeBattery, bool squareBattery)
{
    uint8_t value;

    value = clock_readRegister8(DS3231_REG_CONTROL);

    if (squareBattery)
    {
        value |= 0b01000000;
    } else
    {
        value &= 0b10111111;
    }

    if (timeBattery)
    {
        value &= 0b01111011;
    } else
    {
        value |= 0b10000000;
    }

    clock_writeRegister8(DS3231_REG_CONTROL, value);
}

void clock_writeRegister8(uint8_t reg, uint8_t value)
{
    Wire.beginTransmission(DS3231_ADDRESS);
    #if ARDUINO >= 100
        Wire.write(reg);
        Wire.write(value);
    #else
        Wire.send(reg);
        Wire.send(value);
    #endif
    Wire.endTransmission();
}

RTCDateTime clock_getDateTime(void)
{
    int values[7];

    Wire.beginTransmission(DS3231_ADDRESS);
    #if ARDUINO >= 100
        Wire.write(DS3231_REG_TIME);
    #else
        Wire.send(DS3231_REG_TIME);
    #endif
    Wire.endTransmission();

    Wire.requestFrom(DS3231_ADDRESS, 7);

    while(!Wire.available())
  {
    delay(1);
    error_cnt++;
    if(error_cnt>15)
    {
      error_cnt=0;
     return dt;}};

    for (int i = 6; i >= 0; i--)
    {
        #if ARDUINO >= 100
            values[i] = bcd2dec(Wire.read());
        #else
            values[i] = bcd2dec(Wire.receive());
        #endif
    }

    Wire.endTransmission();

    dt.year = values[0] + 2000;
    dt.month = values[1];
    dt.day = values[2];
    dt.dayOfWeek = values[3];
    dt.hour = values[4];
    dt.minute = values[5];
    dt.second = values[6];
    dt.unixtime = unixtime();

    return dt;
}

uint8_t clock_readRegister8(uint8_t reg)
{
    uint8_t value;
    Wire.beginTransmission(DS3231_ADDRESS);
    #if ARDUINO >= 100
        Wire.write(reg);
    #else
        Wire.send(reg);
    #endif
    Wire.endTransmission();

    Wire.requestFrom(DS3231_ADDRESS, 1);
    while(!Wire.available()) {
    delay(1);
    error_cnt++;
    if(error_cnt>15)
    {
      error_cnt=0;
     return value;}};
    #if ARDUINO >= 100
        value = Wire.read();
    #else
        value = Wire.receive();
    #endif

    Wire.endTransmission();

    return value;
}

uint8_t bcd2dec(uint8_t bcd)
{
    return ((bcd / 16) * 10) + (bcd % 16);
}

uint8_t dec2bcd(uint8_t dec)
{
    return ((dec / 10) * 16) + (dec % 10);
}

uint32_t unixtime(void)
{
    uint32_t u;

    u = time2long(date2days(dt.year, dt.month, dt.day), dt.hour, dt.minute, dt.second);
    u += 946681200;

    return u;
}

uint16_t date2days(uint16_t year, uint8_t month, uint8_t day)
{
    year = year - 2000;

    uint16_t days16 = day;

    for (uint8_t i = 1; i < month; ++i)
    {
        days16 += pgm_read_byte(daysArray + i - 1);
    }

    if ((month == 2) && isLeapYear(year))
    {
        ++days16;
    }

    return days16 + 365 * year + (year + 3) / 4 - 1;
}

long time2long(uint16_t days, uint8_t hours, uint8_t minutes, uint8_t seconds)
{
    return ((days * 24L + hours) * 60 + minutes) * 60 + seconds;
}

bool isLeapYear(uint16_t year)
{
    return (year % 4 == 0);
}

void clock_setDateTime(const char* date, const char* time)
{
    uint16_t year;
    uint8_t month;
    uint8_t day;
    uint8_t hour;
    uint8_t minute;
    uint8_t second;

    year = conv2d(date + 9);

    switch (date[0])
    {
        case 'J': month = date[1] == 'a' ? 1 : month = date[2] == 'n' ? 6 : 7; break;
        case 'F': month = 2; break;
        case 'A': month = date[2] == 'r' ? 4 : 8; break;
        case 'M': month = date[2] == 'r' ? 3 : 5; break;
        case 'S': month = 9; break;
        case 'O': month = 10; break;
        case 'N': month = 11; break;
        case 'D': month = 12; break;
    }

    day = conv2d(date + 4);
    hour = conv2d(time);
    minute = conv2d(time + 3);
    second = conv2d(time + 6);

    setDateTime(year+2000, month, day, hour, minute, second);
}

uint8_t conv2d(const char* p)
{
    uint8_t v = 0;

    if ('0' <= *p && *p <= '9')
    {
        v = *p - '0';
    }

    return 10 * v + *++p - '0';
}

void setDateTime(uint16_t year, uint8_t month, uint8_t day, uint8_t hour, uint8_t minute, uint8_t second)
{
    Wire.beginTransmission(DS3231_ADDRESS);

    #if ARDUINO >= 100
        Wire.write(DS3231_REG_TIME);Serial.println("wwwwwwwwwwwww");
    #else
        Wire.send(DS3231_REG_TIME);Serial.println("bbbbbbbbbbb");
    #endif

    #if ARDUINO >= 100
        Wire.write(dec2bcd(second));
        Wire.write(dec2bcd(minute));
        Wire.write(dec2bcd(hour));
        Wire.write(dec2bcd(dow(year, month, day)));
        Wire.write(dec2bcd(day));
        Wire.write(dec2bcd(month));
        Wire.write(dec2bcd(year-2000));
    #else
        Wire.send(dec2bcd(second));
        Wire.send(dec2bcd(minute));
        Wire.send(dec2bcd(hour));
        Wire.send(dec2bcd(dow(year, month, day)));
        Wire.send(dec2bcd(day));
        Wire.send(dec2bcd(month));
        Wire.send(dec2bcd(year-2000));
    #endif

    #if ARDUINO >= 100
        Wire.write(DS3231_REG_TIME);
    #else
        Wire.send(DS3231_REG_TIME);
    #endif

    Wire.endTransmission();
}

uint8_t dow(uint16_t y, uint8_t m, uint8_t d)
{
    uint8_t dow;

    y -= m < 3;
    dow = ((y + y/4 - y/100 + y/400 + pgm_read_byte(dowArray+(m-1)) + d) % 7);

    if (dow == 0)
    {
        return 7;
    }

    return dow;
}

static bool measure_environment( float *temperature, float *humidity )
{
  static unsigned long measurement_timestamp = millis( );

  if( millis( ) - measurement_timestamp > 3000ul )
  {
    if( dht_sensor.measure( temperature, humidity ) == true )
    {
      measurement_timestamp = millis( );
      return( true );
    }
  }

  return( false );
}

void update_dht11_value()
{
  float tem_temperature;
  float tem_humidity;

  if( measure_environment( &tem_temperature, &tem_humidity ) == true )
  {
    temperature = tem_temperature;
    humidity = tem_humidity;
  }
}

  void eeprom_write_int(unsigned int address, unsigned int data)
{
    unsigned int dataL = data&0xFF;
    unsigned int dataH = data>>8;
    EEPROM.write(address,   dataL);
    EEPROM.write(address+1, dataH);
}

unsigned int eeprom_read_int(unsigned int address)
{
    unsigned int dataL = EEPROM.read(address);
    unsigned int dataH = EEPROM.read(address+1);
    return((dataH<<8) + dataL);
}

void eeprom_clear_all(unsigned int eeprom_size)
{
    unsigned int i = 0;
    unsigned char data = 0;
    for (i=0; i<eeprom_size; i++)
    {
        EEPROM.write(i, data);
    }
}

void MCU_timer_interrupt_init(unsigned long time2)
{
   MsTimer2::set(time2, timer2_interrupt); // 100ms period
   MsTimer2::start();
}

void timer2_interrupt()
{
   task1_press_continuously();  //task1 was run every 100 ms.            The "100"  is because "task1_cnt * TIMER_TIME = 2*50 = 100"
   task2_cout_down();           //task2 was run every about 1s(1050ms，Because there may be errors.).  The "1050" is because "task2_cnt * TIMER_TIME = 50*21 = 1050"
   task3_update_RTCtime();      //task3 was run every about 200 ms.      The "200"  is because "task3_cnt * TIMER_TIME = 4*50 = 200"
   task_reset();                //reset was run every about 5s(5250ms).  The "5250" is because "waiting_time_cnt * TIMER_TIME = 105*50 = 5250"

   task1_cnt++;
   task2_cnt++;
   task3_cnt++;
}


void task_reset()
{
  if(waiting_time_cnt)
    {
      waiting_time_cnt++;
      }

  if(waiting_time_cnt==105)
    {
     rgb_light();
     function_clock=1;
     flag_year = 0;
     flag_month = 0;
     press_cnt = 0;
     flag_temperature=0;
     flag_humidity=0;
     waiting_time_cnt=0;
     flag_alarm = 1;
     flag_alarm_set = 0;
    }
}

#define TIME 2

void interface_display()
{
  if (function_clock)
  {
    if (flag_year)
    {
      number = dt.year;
      display_num(number);
    }
    else if (flag_month)
    {
      number = dt.month * 100 + dt.day;
      display_num(number);
    }
    else if (flag_temperature)
    {
      number = temperature * 100;
      //clear_bit_display();
      temperature_display(number);
    }
    else if (flag_humidity)
    {
      number = humidity * 100;
      //clear_bit_display();
      humidity_display(number);
    }
    else
    {
      if (!flag_alarm_set)
        number = dt.hour * 100 + dt.minute;
      display_num(number);
    }
  }
  else
  {
    display_num(number);
  }
}

void latch_init(const uint8_t latch, const uint8_t clock, const uint8_t data)
{
  pinMode(latch, OUTPUT);
  pinMode(clock, OUTPUT);
  pinMode(data, OUTPUT);
}

void com_init(const uint8_t com1 , const uint8_t com2 , const uint8_t com3 , const uint8_t com4 )
{
  pinMode(com1, OUTPUT);
  pinMode(com2, OUTPUT);
  pinMode(com3, OUTPUT);
  pinMode(com4, OUTPUT);
}

void display_num(uint16_t num)
{
  uint8_t com = 0;
  uint8_t polling = 0;
  uint8_t bit_num = 0;
  uint8_t num_place[4] = {0};

  if (num >= 1000 && num <= 9999)
  {
    polling = 4;
    bit_num = 3;
    num_place[3] = num / 1000;
    num_place[2] = num / 100 % 10;
    num_place[1] = num / 10 % 10;
    num_place[0] = num % 10;
    for (int i = 0; i < 4; i++)
    { clear_bit_display();
      choose_com(polling);
      polling--;
      if (2 == polling && !flag_year)
      {
        display2(num_place[bit_num--]);
      }
      else
        display(num_place[bit_num--]);
      delay(TIME);
    }
  }
  else if (num >= 100 && num < 1000)
  {
    polling = 3;
    bit_num = 2;
    num_place[2] = num / 100;
    num_place[1] = num / 10 % 10;
    num_place[0] = num % 10;
    for (int i = 0; i < 3; i++)
    { clear_bit_display();
      choose_com(polling);
      polling--;
      if (2 == polling && !flag_year)
      {
        display2(num_place[bit_num--]);
      }
      else
        display(num_place[bit_num--]);

      delay(TIME);
    }
  }
  else if (num >= 10 && num < 100)
  {
    polling = 2;
    bit_num = 1;
    num_place[1] = num / 10;
    num_place[0] = num % 10;

    if (flag_alarm_set || function_clock)
    {
      polling = 4;
      for (int i = 0; i < 2; i++)
      { clear_bit_display();
        choose_com(polling);
        polling--;
        display(0);
        delay(TIME);
      }
    }

    for (int i = 0; i < 2; i++)
    { clear_bit_display();
      choose_com(polling);
      polling--;
      if (2 == polling && !flag_year)
      {
        display2(num_place[bit_num--]);
      }
      else
        display(num_place[bit_num--]);
      delay(TIME);
    }
  }
  else if (num >= 0 && num <= 9)
  {
    uint8_t com = 0;
    uint8_t polling = 0;
    uint8_t bit_num = 0;
    uint8_t num_place[4] = {0};

    if (flag_alarm_set || function_clock)
    {
      polling = 4;
      for (int i = 0; i < 3; i++)
      { clear_bit_display();
        choose_com(polling);
        polling--;
        display(0);
        delay(TIME);
      }
    }

    num_place[0] = num % 10;
    choose_com(1);
    clear_bit_display();
    display(num_place[0]);
    delay(TIME);
  }
  else
  {
    num = 9999;
  }
}

void temperature_display(uint16_t num)
{
  uint8_t com = 0;
  uint8_t bit_num = 0;
  uint8_t num_place[4] = {0};

  if (num >= 1000 && num <= 9999)
  {
    bit_num = 3;
    num_place[3] = num / 1000;
    num_place[2] = num / 100 % 10;
    num_place[1] = num / 10 % 10;
    clear_bit_display();
    choose_com(4);

    display(num_place[bit_num--]);
    delay(TIME);
    clear_bit_display();
    choose_com(3);

    digitalWrite(LATCH, LOW);
    shiftOut(DATA, CLOCK, MSBFIRST, dht11_buf2[num_place[bit_num--]]);
    digitalWrite(LATCH, HIGH);
    delay(TIME);
    clear_bit_display();
    choose_com(2);

    display(num_place[bit_num--]);
    delay(TIME);
    clear_bit_display();
    choose_com(1);

    display(10);
    delay(TIME);
  }
}


void humidity_display(uint16_t num)
{
  uint8_t com = 0;
  uint8_t bit_num = 0;
  uint8_t num_place[4] = {0};

  if (num >= 1000 && num <= 9999)
  {
    bit_num = 3;
    num_place[3] = num / 1000;
    num_place[2] = num / 100 % 10;
    num_place[1] = num / 10 % 10;
    clear_bit_display();
    choose_com(4);

    display(num_place[bit_num--]);
    delay(TIME);
    clear_bit_display();
    choose_com(3);

    digitalWrite(LATCH, LOW);
    shiftOut(DATA, CLOCK, MSBFIRST, dht11_buf2[num_place[bit_num--]]);
    digitalWrite(LATCH, HIGH);
    delay(TIME);
    clear_bit_display();
    choose_com(2);

    display(num_place[bit_num--]);
    delay(TIME);
    clear_bit_display();
    choose_com(1);

    display(11);
    delay(TIME);
  }
}

void display(uint8_t num)
{
  //clear_bit_display();
  digitalWrite(LATCH, LOW);
  shiftOut(DATA, CLOCK, MSBFIRST, num_buf[num]);
  digitalWrite(LATCH, HIGH);
  //digitalWrite(LATCH,LOW);
}

void display2(uint8_t num)
{
  //clear_bit_display();
  digitalWrite(LATCH, LOW);
  shiftOut(DATA, CLOCK, MSBFIRST, num_buf_1[num]);
  digitalWrite(LATCH, HIGH);
  //digitalWrite(LATCH,LOW);
}

void choose_com(uint8_t com)
{
  switch (com)
  {
    case 1: choose_com1();

      break;
    case 2: choose_com2();

      break;
    case 3: choose_com3();

      break;
    case 4: choose_com4();

      break;
    default : break;
  }
}

void choose_com1()
{
  digitalWrite(COM1, LOW);
  digitalWrite(COM2, HIGH);
  digitalWrite(COM3, HIGH);
  digitalWrite(COM4, HIGH);
}

void choose_com2()
{
  digitalWrite(COM1, HIGH);
  digitalWrite(COM2, LOW);
  digitalWrite(COM3, HIGH);
  digitalWrite(COM4, HIGH);
}
void choose_com3()
{
  digitalWrite(COM1, HIGH);
  digitalWrite(COM2, HIGH);
  digitalWrite(COM3, LOW);
  digitalWrite(COM4, HIGH);
}
void choose_com4()
{
  digitalWrite(COM1, HIGH);
  digitalWrite(COM2, HIGH);
  digitalWrite(COM3, HIGH);
  digitalWrite(COM4, LOW);
}

void close_all_com()
{
  digitalWrite(COM1, LOW);
  digitalWrite(COM2, HIGH);
  digitalWrite(COM3, HIGH);
  digitalWrite(COM4, HIGH);

}

void clear_bit_display()
{
  digitalWrite(LATCH, LOW);
  shiftOut(DATA, CLOCK, MSBFIRST, 0);
  digitalWrite(LATCH, HIGH);
  digitalWrite(LATCH, LOW);
  delay(TIME);
}


void clear_display()
{
  for (int i = 0; i < 4; i++)
  {
    choose_com(i);
    digitalWrite(LATCH, LOW);
    shiftOut(DATA, CLOCK, MSBFIRST, 0);
    digitalWrite(LATCH, HIGH);
    digitalWrite(LATCH, LOW);
    delay(TIME);
  }
}

 #ifndef MYTIMER_H
#define MYTIMER_H
#include <dht_nonblocking.h>
#include <EEPROM.h>

void time_out();
void clock_to_timer();
unsigned int eeprom_read_int(unsigned int address);

volatile static uint8_t waiting_time_cnt=0;

volatile static int time_button_ms=0;
volatile static int time_button_s=0;
volatile static int time_button_choose=0;
volatile static int time_button_display_change=0;

volatile static int time_timer=0;

volatile static int last_time_button_ms=0;
volatile static int last_time_button_s=0;
volatile static int last_time_button_choose=0;
volatile static int last_time_button_display_change=0;

volatile static uint8_t function_clock=1;
volatile static uint16_t flag_begin=0;
volatile static uint16_t flag_year=0;
volatile static uint16_t flag_month=0;
volatile static uint16_t flag_temperature=0;
volatile static uint16_t flag_humidity=0;
volatile static uint16_t flag_alarm=1;
volatile static uint16_t flag_alarm_set=0;
volatile static uint16_t flag_alarm_set_ok= EEPROM.read(3);
volatile static uint16_t flag_alarm_ring=0;
volatile static uint16_t flag_100ms_update_clock=1;

volatile static float temperature;
volatile static float humidity;

volatile static uint8_t  press_cnt;

volatile static uint16_t number=0;

volatile const static uint8_t num_buf[]={0x3f,0x06,0x5b,0x4f,0x66,0x6d,0x7d,0x07,0x7f,0x6f,0x39,0x76};
volatile const static uint8_t num_buf_1[]={0xbf,0x86,0xdb,0xcf,0xe6,0xed,0xfd,0x87,0xff,0xef,0x39,0x76};//.

volatile static uint8_t dht11_buf[]={0x3f,0x06,0x5b,0x4f,0x66,0x6d,0x7d,0x07,0x7f,0x6f};
volatile static uint8_t dht11_buf2[]={0xbf,0x86,0xdb,0xcf,0xe6,0xed,0xfd,0x87,0xff,0xef};

volatile static uint16_t alarm_value = eeprom_read_int(0);


#define DHT_SENSOR_PIN 11
DHT_nonblocking dht_sensor( DHT_SENSOR_PIN, DHT_TYPE_11 );

#define TIMER_TIME 50

#define BUTTON_S A0
#define BUTTON_MS A2
#define BUTTON_CHOOSE A1
#define BUTTON_DISPLAY_CHANGE 10

//#define COM4 5
//#define COM3 4
//#define COM2 30
//#define COM1 2

#define COM1 2
#define COM2 4
#define COM3 A3
#define COM4 7

#define LATCH 12  //STCP
#define CLOCK 13 //SHCP
#define DATA 8   //DS

#define BUZZER 3


#define GREEN 9
#define RED 6

static const uint8_t rgb_color_delay = 15;
static uint16_t task1_cnt=0;
static uint16_t task2_cnt=0;
static uint16_t task3_cnt=0;

enum display_mode
{
  DISPLAY_YEAR,
  DISPLAY_MONTH,
  DISPLAY_TIME,
  DISPLAY_TEMPERATURE,
  DISPLAY_HUNMIDITY,
};


#endif

#include "PinChangeInterrupt.h"
#include "MsTimer2.h"
#include "clock.h"
#include "MyTimer.h"
#include "MyTimerDetails.h"
#include <Wire.h>
#include <dht_nonblocking.h>
#include <avr/wdt.h>
#include <EEPROM.h>

/***********************************************************************************************************************
 *                                             My Timer                                                                      *
 *                            Copyright (c)     Elegoo    //www.elegoo.com
 *                            Author:           wee                                                              *                                                                                 *
 *                            Version number :  1.00                                                                                       *
 *                            Date :            2019.8.22
 *                                                                                                           *
 ***********************************************************************************************************************/


void setup()
{// ←←←←←←←←←←←←←←←←←←←←←←←←←←←←←←←←←←←←←←←←←←←←←←←←←←←←←←←←←←←←←←←←←←←←←←←                                                                                                            ←
 // ↓                                      //*******************************************************************  ↑
  //You_must_do_for_the_first_time();     // if you are the first time to upload the code you must delete the  '//'
                                           // to initialize the time .
                                           // And then add the '//' again in the second time.
                                           //*******************************************************************
  latch_init(LATCH,CLOCK,DATA); //74hC595

  com_init(COM1,COM2,COM3,COM4);

  button_init(BUTTON_S,BUTTON_MS,BUTTON_CHOOSE,BUTTON_DISPLAY_CHANGE);

  button_interrupt_init(BUTTON_S,BUTTON_MS,BUTTON_CHOOSE,BUTTON_DISPLAY_CHANGE);

  MCU_timer_interrupt_init(TIMER_TIME); //set timer2 0.05s

  buzzer_init(BUZZER);

  clock_init();

  rgb_init();

  wdt_enable(WDTO_120MS);

  rgb_light();
}

void loop()
{
   update_clock();

   update_dht11_value();

   interface_display();

   time_out();

   wdt_reset();
}

void You_must_do_for_the_first_time()
{
  clock_setDateTime(__DATE__, __TIME__);
  eeprom_clear_all(256);
}

#ifndef MYTIMERDETAILS_H
#define MYTIMERDETAILS_H


#define BUTTON_MS_WAS_PRESSED_AND_LASTS_FOR_1000_MS (!digitalRead(BUTTON_MS) &&  1000 < (abs(time_button_ms-time_timer)))
#define BUTTON_S_WAS_PRESSED_AND_LASTS_FOR_1000_MS (!digitalRead(BUTTON_S) &&  1000 < (abs(time_button_s-time_timer)))

#define ELIMINAT_THE_JITTER_OF_BUTTON_S (200 < (abs(time_button_s - last_time_button_s)))
#define ELIMINAT_THE_JITTER_OF_BUTTON_MS (200 < (abs(time_button_ms - last_time_button_ms)))
#define ELIMINAT_THE_JITTER_OF_BUTTON_CHOOSE (200 < (abs(time_button_choose - last_time_button_choose)))
#define ELIMINAT_THE_JITTER_OF_BUTTON_DISPLAY_CHANGE (200 < (abs(time_button_display_change - last_time_button_display_change)))







#endif

void rgb_init()
{
  pinMode(RED, OUTPUT);
  pinMode(GREEN, OUTPUT);
  digitalWrite(RED, LOW);
  digitalWrite(GREEN, LOW);
 // rgb_green();
}

void rgb_color()
{
  int redValue = 20;
  int greenValue = 0;

    for(int i = 0; i < 20; i += 1)
  {
    wdt_reset();
    redValue -= 1;
    greenValue += 1;
    analogWrite(RED, redValue);
    analogWrite(GREEN, greenValue);
    delay(rgb_color_delay);
  }
}

void rgb_light()
{
  if(flag_alarm_set_ok)
     rgb_yellow();
  else
     rgb_green();
}

void rgb_green()
{
  analogWrite(RED, 0);
  analogWrite(GREEN, 33);
}

void rgb_yellow()
{
  analogWrite(RED, 33);
  analogWrite(GREEN, 33);
}

void close_rgb()
{
  analogWrite(RED, 0);
  analogWrite(GREEN, 0);
}

void task1_press_continuously()
{
     if(task1_cnt == 2)
  {
      task1_cnt = 0;
      time_timer=millis();

      task1_case1_button_ms_was_pressed_and_lasts_for_1000ms();
      task1_case2_button_s_was_pressed_and_lasts_for_1000ms();
  }
}

void task1_case1_button_ms_was_pressed_and_lasts_for_1000ms()
{
   if(BUTTON_MS_WAS_PRESSED_AND_LASTS_FOR_1000_MS)
 {
     number +=1;
     waiting_time_cnt=1;
     if(number%100 == 60 && number != 60)
        number = number/100*100+100;

     if(flag_alarm_set && number >=2359)
       {number = 0;}

     if(number==60)
        number=100;
  }
}

void task1_case2_button_s_was_pressed_and_lasts_for_1000ms()
{
  if(BUTTON_S_WAS_PRESSED_AND_LASTS_FOR_1000_MS)
    {
       number +=100;
       waiting_time_cnt=1;

       if(flag_alarm_set && number >=2400)
       { number = 0;}
     }
}

void task2_cout_down()
{
    if(task2_cnt == 21)
  {
    task2_cnt = 0;

    if(flag_begin)
   {
      if (number > 9999)
         number = 9999;

      if(number%100 > 60 || number == 99)
         number = number/100*100+59;

      if(number>0)
      {
         number--;
         waiting_time_cnt=1;
      }

      if (number > 9999)
        number = 9999;

      if(number%100 > 60 || number == 99)
         number = number/100*100+59;
    }
  }
}

void task3_update_RTCtime()
{
   if(task3_cnt == 100)
  {
    task3_cnt = 0;
    flag_100ms_update_clock=!flag_100ms_update_clock;
  }
}
